Securely Exposing Internal GCP VMs using Cloudflare Tunnels

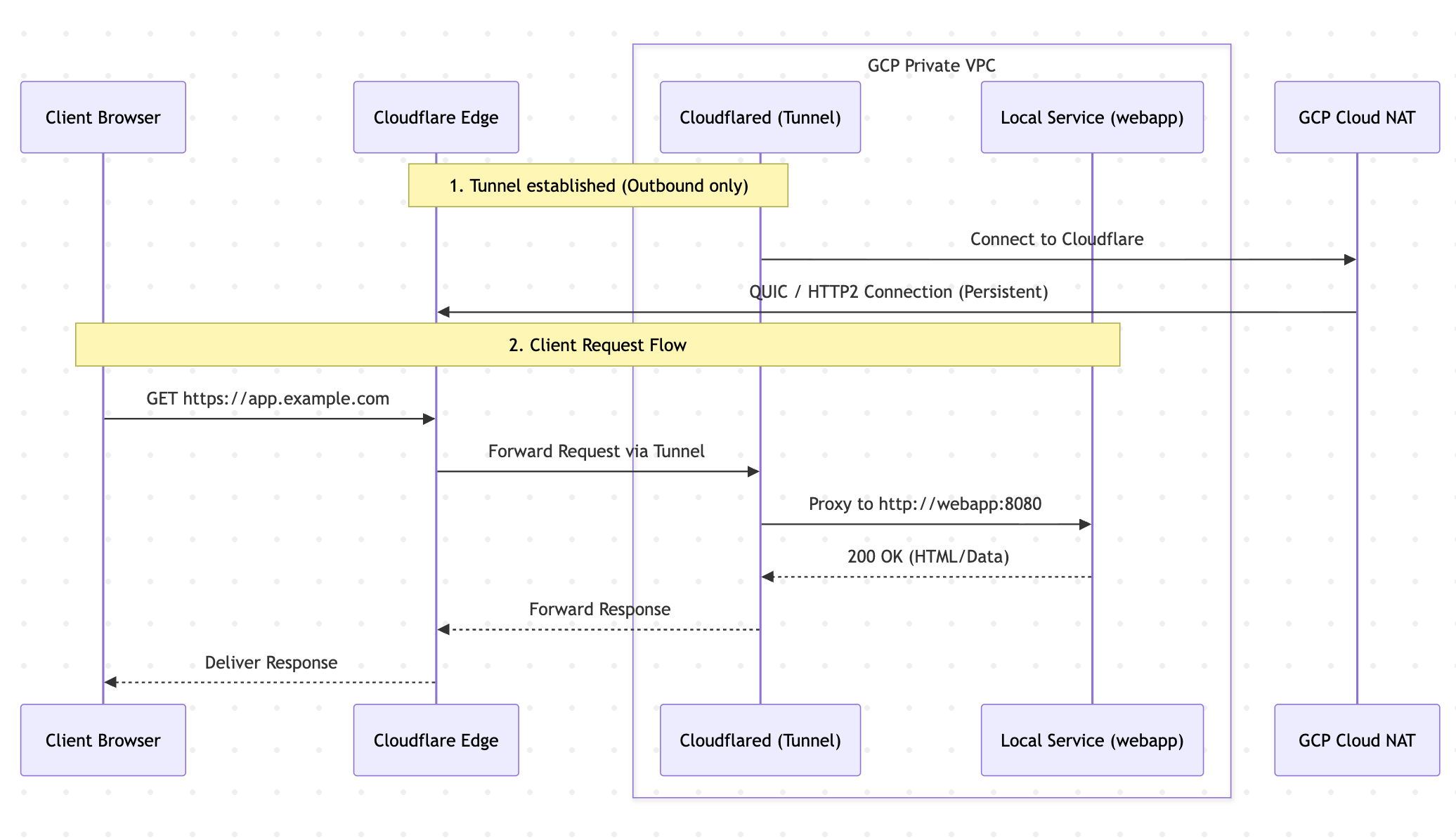

Exposing a web service to the public internet typically involves assigning a public IP address to the Virtual Machine, opening firewall ports (e.g., 80/443), and configuring TLS certificates. However, this traditional approach leaves the infrastructure vulnerable to port scanning, DDoS attacks, and zero-day exploits. A more modern, secure, and elegant approach is to use a **Cloudflare Tunnel (`cloudflared`)** combined with a GCP VM that has **no external IP address**. This article explains the architecture, security benefits, step-by-step implementation, and troubleshooting for this approach. --- ## 1. The Architecture Instead of accepting incoming connections (Ingress), the `cloudflared` daemon runs on the VM and establishes an outbound-only, encrypted, long-lived QUIC connection to the Cloudflare Edge network. When a client visits the configured domain, Cloudflare proxies the request through this established tunnel directly to the internal service.  ### Benefits of this architecture 1. **No Ingress Firewall Rules**: There is no need to open port 80 or 443 in the GCP VPC firewall. 2. **No Public IP**: The VM is invisible to the public internet. It cannot be pinged or port-scanned. 3. **Automatic SSL/TLS at the Edge**: While end-to-end encryption (HTTPS everywhere) is advocated as a best practice, this guide configures the internal traffic between `cloudflared` and the target service as plain HTTP for simplicity. Cloudflare handles the public-facing HTTPS certificates automatically, simplifying the initial setup. 4. **Out-of-the-box DDoS Protection**: Cloudflare absorbs volumetric attacks before they ever reach the GCP infrastructure. --- ## 2. GCP VM Security Measures When designing a secure VM without an external IP, the following GCP-specific security measures should be implemented: ### A. Networking (Cloud NAT) Since the VM has no public IP, it cannot access the internet directly. However, `cloudflared` needs internet access to connect to Cloudflare, and the VM needs internet to pull updates or Docker images. - **Solution**: Set up a **Cloud Router** and **Cloud NAT** in the VPC. This allows outbound internet access for internal VMs while blocking all inbound internet connections. ### B. Shielded VM Features Enable Shielded VM options to protect the boot process and kernel integrity: - **Secure Boot**: Ensures the system only boots authentic, digitally signed software. - **vTPM (Virtual Trusted Platform Module)**: Validates the VM's identity and provides secure key generation. - **Integrity Monitoring**: Generates alerts if the boot sequence is tampered with. ### C. Identity and API Access - **Dedicated Service Account**: Avoid using the default Compute Engine service account. Create a custom service account with the absolute minimum permissions required. - **Metadata Security**: Ensure `disable-legacy-endpoints = true` in the instance metadata to prevent Server-Side Request Forgery (SSRF) attacks from extracting GCP credentials from the metadata server. ### D. Secure SSH Access (IAP) Since there is no public IP, standard SSH over the internet is impossible. - **Solution**: Use **Identity-Aware Proxy (IAP) TCP Forwarding**. IAP validates Google Identity and IAM permissions before tunneling the SSH connection through GCP's internal backbone to the VM. --- ## 3. Step-by-Step Implementation ### Step 1: Provisioning the Cloudflare Tunnel 1. Navigate to the **Cloudflare Zero Trust Dashboard** -> Networks -> Tunnels. 2. Create a new tunnel and select **Cloudflared**. 3. Add a Public Hostname (e.g., `app.example.com`) and point it to the internal service (`http://webapp:8080`). 4. Copy the generated **Tunnel Token**. ### Step 2: Infrastructure Configuration (Docker Compose) Docker Compose can be used to run both the service and the `cloudflared` daemon in the same isolated bridge network. ```yaml version: '3.8' services: webapp: image: your-company/webapp:latest restart: always environment: - APP_ENV=production # Listen on all interfaces inside the container, but expose NO ports to the host - LISTEN_ADDRESS=0.0.0.0 cloudflared: image: cloudflare/cloudflared:latest restart: always # CRITICAL: Prevent zombie processes by running tini as PID 1 init: true command: tunnel --no-autoupdate run environment: - TUNNEL_TOKEN=your_secret_token_here depends_on: - webapp ``` *Note: Notice there is no `ports: ["8080:8080"]` mapped to the host. The `cloudflared` container reaches the web app entirely within the internal Docker network via `http://webapp:8080`.* ### Step 3: Run the stack ```bash docker-compose up -d ``` Within seconds, `cloudflared` will connect to the Cloudflare Edge, and the site will be securely accessible. --- ## 4. Diagnostics & Troubleshooting When diagnosing connectivity issues, the non-standard traffic flow requires a systematic approach. ### A. Diagnosing the Edge (Cloudflare) A **502 Bad Gateway** error indicates that Cloudflare Edge cannot reach the `cloudflared` tunnel, OR `cloudflared` cannot reach the target container. ```bash # Check the HTTP response from the outside curl -I https://app.example.com ``` ### B. Diagnosing the Host & Services Before diving into logs, verify the overall health and resource consumption of the host and Docker containers. ```bash # Check container uptime, status, and IDs sudo docker ps -a # Check memory and CPU usage (crucial for diagnosing OOM freezes) sudo docker stats --no-stream # Look for stray processes outside of Docker sudo ps aux | grep cloudflared sudo systemctl status webapp.service ``` ### C. Diagnosing the Tunnel (Cloudflared) Verify that `cloudflared` is running and successfully connected to the Edge: ```bash sudo docker logs --tail 50 <cloudflared_container_id> ``` *Look for: `INF Registered tunnel connection` or `ERR Unable to reach the origin service`.* ### D. Verifying Internal Docker Connectivity Verify that the service is actually alive and responding to the tunnel's requests. Simulate the tunnel's behavior by running a temporary curl container inside the same Docker network: ```bash # Replace 'app_default' with the actual docker network name sudo docker run --rm --network app_default curlimages/curl -s -I -m 5 http://webapp:8080 ``` *If this returns `200 OK`, the service is healthy, and the issue lies in the Tunnel or Cloudflare configuration.* --- ## 5. Common Failures & Edge Cases > [!WARNING] > **The Zombie Process (Duplicate Connectors)** > When updating or restarting containers (`docker-compose down && docker-compose up`), Docker sends a `SIGTERM` to `cloudflared`. Occasionally, the process ignores the signal, and Docker forcefully orphans it. The process remains alive in the host OS's memory, continuing to send keep-alives to Cloudflare. > > **Symptom:** Cloudflare load-balances traffic between the new healthy container and the old "zombie" process. 50% of incoming requests will randomly return a 502 Bad Gateway. > **Fix:** > 1. Find the zombie: `sudo ps aux | grep cloudflared` > 2. Kill the duplicate PIDs: `sudo kill -9 <PID>` > 3. **Prevention:** Always add `init: true` to the `cloudflared` service in `docker-compose.yml`. This forces Docker to use a proper init system (Tini) as PID 1, which reliably reaps and kills child processes. > [!CAUTION] > **OOM (Out of Memory) Hangs** > If the VM lacks sufficient memory (e.g., using an `e2-micro` with 1GB RAM for a heavy Node.js app), the application may freeze without the container crashing. The status will show `Up X minutes`, but the application's event loop is blocked. > > **Symptom:** `cloudflared` cannot proxy requests, Cloudflare times out after 15 seconds, and returns a 502. Running the diagnostic internal `curl` command will hang indefinitely. > **Fix:** Increase the VM machine type (e.g., to `e2-medium` 4GB) or configure swap space. > [!NOTE] > **Protocol Mismatch (HTTP vs HTTPS)** > While end-to-end HTTPS is the recommended best practice, this guide uses plain HTTP internally for simplicity. If a protocol mismatch occurs, connectivity will fail. > - If the internal service expects HTTPS, but `cloudflared` sends HTTP, the connection will be dropped immediately. > - If `cloudflared` is configured to send HTTPS, it will fail if the internal service presents an untrusted/self-signed certificate (unless configured to skip TLS verification). > > Ensure the protocol configured in the Cloudflare Zero Trust Dashboard perfectly matches what the internal container expects.
