Hermes Android: Running Hermes Agent on Android Devices

curl -sSL https://raw.githubusercontent.com/raulvidis/hermes-android/main/install.sh | bash

mkdir -p ~/.hermes/plugins
cp -r hermes-android-plugin ~/.hermes/plugins/hermes-android

adb install hermes-android-*.apk

cd hermes-android-bridge
./gradlew assembleDebug
adb install app/build/outputs/apk/debug/hermes-android-*.apk

Connect to my phone, code is <CODE>

Configuration Reference

The following table documents every option, flag, and field from the sources. Defaults are stated when provided.

Option / Field	Description	Default / Notes
include_system_ui	When set to true on android_read_screen, includes System UI in the accessibility tree	false (System UI excluded by default)
Pairing code	6-character code shown in the app for authentication	Generated by the app
Server address	Entered in the app after Hermes provides it	Provided by Hermes server
Port 8766	WebSocket + HTTP relay port on the server	Fixed port
Rate limiting	5 authentication attempts per 60 seconds, then 5-minute block	Server-side
ws://	Current transport protocol (unencrypted)	Use TLS proxy for production

How It Works

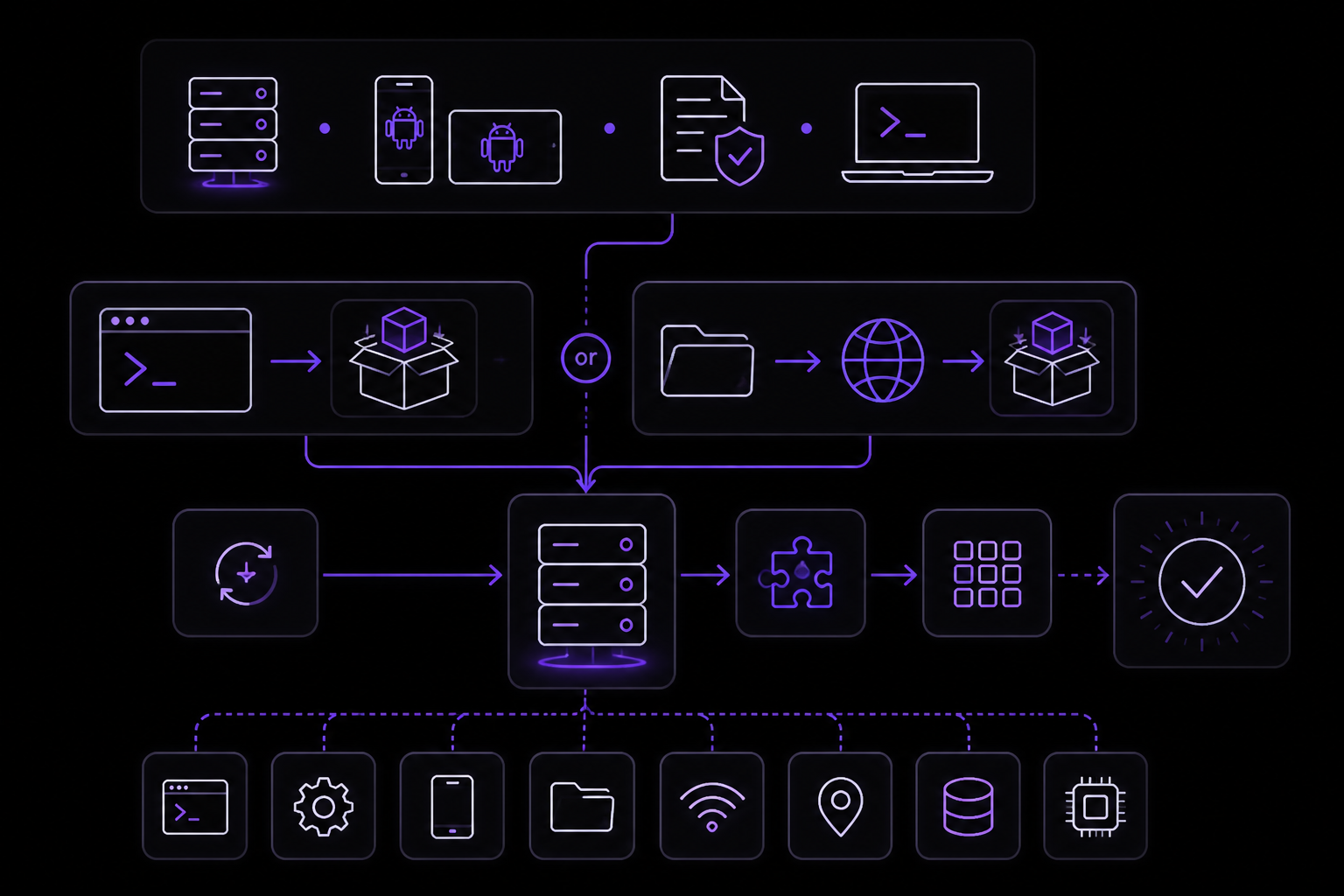

Architecture

The system has two components: an Android app written in Kotlin and a Python toolset running on the Hermes server.

Android app (Kotlin):

• AccessibilityService reads the UI tree and performs taps, types, and swipes
• WebSocket client (OkHttp) connects out to the Hermes server
• Ktor HTTP server for local/USB development
• Pairing code authentication
• Screenshot capture via AccessibilityService API
• Terminal-themed UI

Server (Python):

• WebSocket + HTTP relay (aiohttp) on port 8766
• Tools register into hermes-agent's tool registry
• Rate-limited authentication (5 attempts / 60s, then 5min block)
• Auto-detects server public IP for setup instructions

Data Flow

The phone connects out to the Hermes server via WebSocket. The server relays commands from the AI agent to the phone and returns results. The connection works behind any NAT because the phone initiates the outbound connection. No port forwarding, VPN, or USB is required. The agent communicates with the server over HTTP, and the server communicates with the phone over WebSocket.

Phone (home WiFi)  ──WebSocket──>  Hermes Server (cloud)  <──HTTP──  AI Agent
                                   relay on port 8766

Authentication

When the app starts, it displays a 6-character pairing code. The user tells Hermes (via Telegram, Discord, etc.) to connect using that code. Hermes responds with the server address, which the user enters in the app. The server enforces rate limiting: 5 attempts per 60 seconds, then a 5-minute block.

Security

Key security points from the sources:

• Pairing code authentication with rate limiting
• Phone connects out (never directly exposed)
• Currently unencrypted (ws://), use TLS proxy for production
• Full device access once paired, only connect to trusted servers

The roadmap includes TLS/WSS support for encrypted phone-server communication as a planned v0.2 feature.

Requirements and Limitations

Prerequisites

• Hermes agent v0.3.0 or later
• Android device running Android (version not specified in sources)
• For AAOS: Android Automotive OS head unit
• Network access for the device to reach the Hermes server

Known Limitations

Android Automotive OS:

Tool	Status on AAOS
android_send_sms	Not available, returns error
android_call	Not available, returns error
android_search_contacts	Not available, returns error
android_location	Depends on car unit GPS configuration
android_screen_record	May behave differently (restricted MediaProjection on some OEMs)

All other tools (tap, swipe, type, screenshot, read screen, open apps, etc.) work normally on AAOS.

General:

• The APK is an unsigned debug build, not published on Play Store or F-Droid
• Play Protect may warn on install
• Communication is currently unencrypted (ws://), use a TLS proxy for production
• Full device access is granted once paired, only connect to trusted servers
• The Python code in this repo is for standalone development and testing; the production copy lives in the hermes-agent repo
• The Android app does not use or depend on the Python files

Roadmap Status

The project is described as a working prototype. The following features are planned but not yet implemented:

• v0.2: TLS/WSS support, persistent relay service (systemd unit), server-side call counter, better error reporting, auto-reconnect relay
• v0.3: File transfer (not yet implemented)
• v0.4: Multiple phones, scheduled automations, event triggers, macro recording
• v0.5: Phone call capability, voice assistant mode, call handling
• v0.6: Local model execution, offline fallback, hybrid routing, on-device app adapters
• Future: iOS support, web dashboard, cross-app workflows, dedicated "Hermes Phone"

Troubleshooting

Play Protect Warning on Install

Problem: Android/Play Protect warns that the APK is unsafe.

Fix: This is expected because the APK is an unsigned debug build. It is not yet published on the Play Store or F-Droid. You can proceed with installation by tapping "Install anyway" or disabling Play Protect temporarily for this installation.

Plugin Not Showing After Install

Problem: Running /plugins does not show ✓ hermes-android v0.3.0 (38 tools).

Fix: Ensure you placed the plugin in the correct directory. The manual install command is:

mkdir -p ~/.hermes/plugins
cp -r hermes-android-plugin ~/.hermes/plugins/hermes-android

Then restart hermes completely.

Connection Fails

Problem: The app cannot connect to the Hermes server.

Fix: Verify that:

• The 6-character pairing code is entered correctly
• The server address provided by Hermes is entered correctly in the app
• The device has network access to reach the server (check WiFi or mobile data)
• For AAOS with USB tethering, the adb forward tcp:8766 tcp:8766 command was run
• For AAOS with WiFi, both devices are on the same network and the IP address is correct

Phone-Specific Tools Return Errors on AAOS

Problem: android_send_sms, android_call, or android_search_contacts return errors on a car head unit.

Fix: This is expected behavior. These tools are not available on Android Automotive OS because the hardware (SMS, phone, contacts) is not present. The tools gracefully return errors. Skip granting those permissions during setup.

Screen Recording Not Working on AAOS

Problem: android_screen_record behaves differently or fails on some car head units.

Fix: This is a known limitation. MediaProjection may be restricted by some OEMs on Android Automotive OS. There is no workaround documented in the sources.

Rate Limiting Blocking Authentication

Problem: After several failed pairing attempts, the app cannot connect.

Fix: The server enforces rate limiting: 5 attempts per 60 seconds, then a 5-minute block. Wait 5 minutes before trying again. Ensure the pairing code is entered correctly to avoid triggering the block.

Python Tests Fail

Problem: Running python -m pytest tests/ fails.

Fix: Ensure you installed the dev dependencies:

pip install -e ".[dev]"

Then run the tests again. The Python code in this repo is for standalone development and testing; the production copy is in the hermes-agent repo.
