Load Phi 3 Model, Extract Attention Layer, and Visualize It

To load a Phi 3 model (medium or mini) from Hugging Face, extract its attention weights, and visualize them, you must pass output_attentions=True when calling the model. This produces a tuple outputs.attentions where each element is a tensor of shape (batch_size, num_heads, seq_len, seq_len). You then select a specific layer and head, convert the tensor to a numpy array, and plot it with matplotlib. Avoid calling model.model(input_ids) directly, as that may return a non-standard shape and is not guaranteed to work across model versions.

The Full Answer

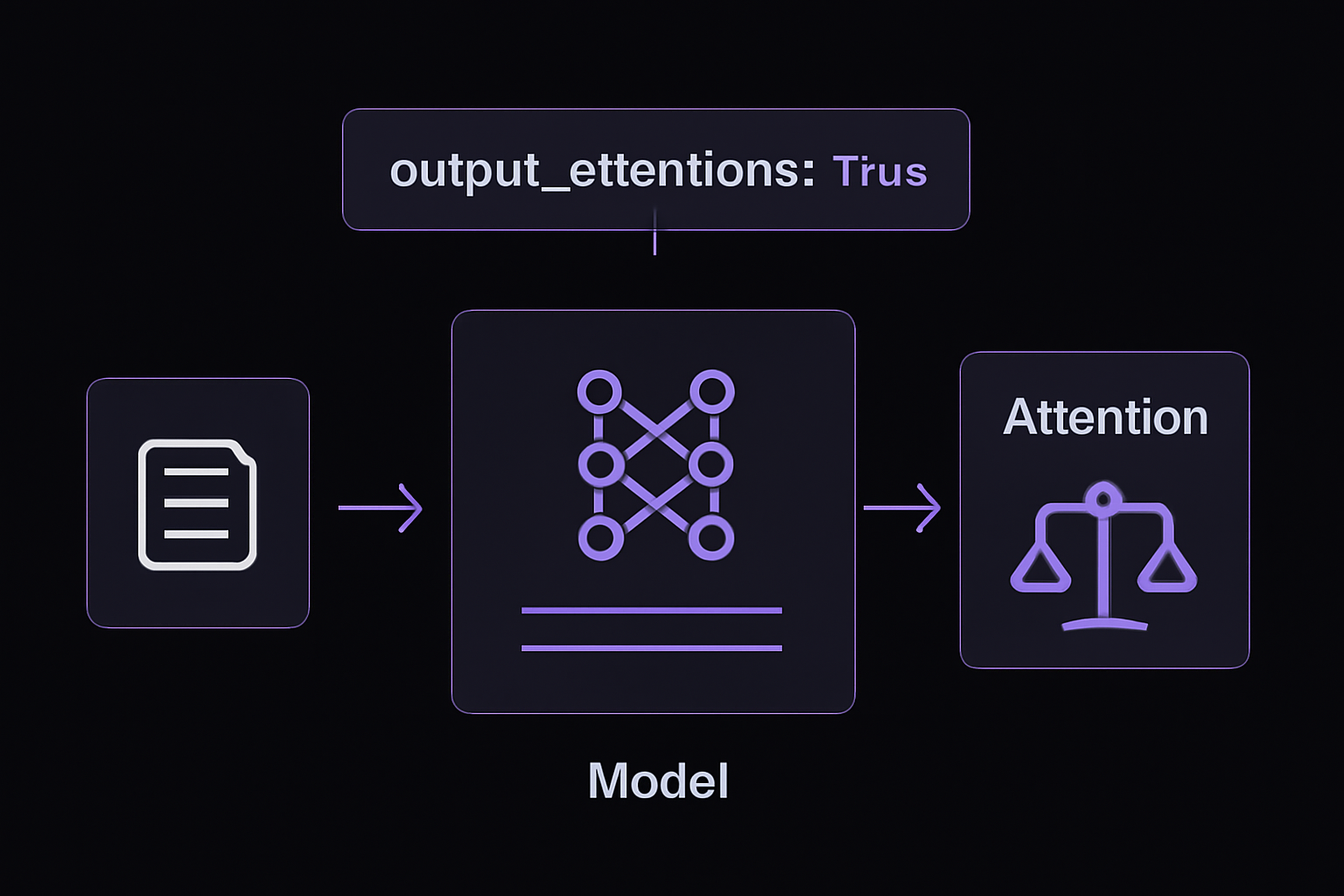

Why You Must Use output_attentions=True

By default, Hugging Face models do not return attention weights. The model's forward pass only computes them internally for the attention mechanism, but discards them unless you explicitly request them. The correct way to retrieve attention is to pass output_attentions=True to the top-level model call. This is the standard Hugging Face Transformers API and is guaranteed to return a tuple of tensors with the expected shape.

If you instead call model.model(input_ids) directly (as shown in the question), you are accessing a lower-level forward method. That method may return a tuple of (hidden_states, present_key_values, attentions) or something else entirely, depending on how the model's internal code is written. The shape you observed (1x40x40x15x15 for the medium model, or 1x12x12x15x15 for the mini model) is actually a misinterpretation of that internal return structure. The first dimension is batch size, the second is the number of layers (40 for medium, 12 for mini), the third is the number of heads per layer, and the last two are the attention matrices (15x15 for 15 tokens). However, this shape is not the standard one you get from outputs.attentions, which is a tuple of tensors each shaped (batch_size, num_heads, seq_len, seq_len). The extra layer dimension in the first index of the tuple is already separated out, so you don't have a 5D tensor. The community advice is clear: always use the top-level model call with output_attentions=True to avoid confusion.

Step-by-Step: Loading the Model and Tokenizer

First, install the required libraries if you haven't already:

pip install transformers torch matplotlib

Then load the tokenizer and model. The example below uses the medium model, but you can replace it with "microsoft/Phi-3-mini-4k-instruct" for the smaller variant. Note the spelling: it's "Phi-3-medium-4k-instruct", not "meduium" as seen in the question's code (that typo will cause an error).

import torch
import matplotlib.pyplot as plt
from transformers import AutoModelForCausalLM, AutoTokenizer

tokenizer = AutoTokenizer.from_pretrained("microsoft/Phi-3-medium-4k-instruct")
model = AutoModelForCausalLM.from_pretrained(
    "microsoft/Phi-3-medium-4k-instruct",
    device_map="auto",
    torch_dtype=torch.float16,  # or torch.float32 if you prefer
    trust_remote_code=True
)

trust_remote_code=True is required because Phi 3 uses custom modeling code that is not part of the standard Transformers library. The device_map="auto" will place the model on available GPUs if present, otherwise on CPU. Using torch.float16 reduces memory usage and speeds up inference, but you can use torch.float32 if you need full precision.

Step-by-Step: Running the Model with Attention Output

Prepare a prompt and tokenize it. The example uses a short sentence, but you can use any text.

prompt = "The quick brown fox jumps over the lazy dog."
inputs = tokenizer(prompt, return_tensors="pt")
inputs = inputs.to("cuda:0")  # move to GPU if available

Now call the model with output_attentions=True. You can also set output_hidden_states=True if you need hidden states, but it's not required for attention.

outputs = model(
    input_ids=inputs.input_ids,
    output_attentions=True
)

The outputs.attentions attribute is a tuple. Each element corresponds to one layer. For the medium model (40 layers), the tuple has 40 elements. For the mini model (12 layers), it has 12 elements. Each element is a tensor of shape (batch_size, num_heads, seq_len, seq_len). For a batch size of 1, 32 heads (medium), and 15 tokens, that shape is (1, 32, 15, 15).

Step-by-Step: Extracting and Visualizing a Single Attention Head

To visualize a specific layer and head, index into the tuple and then into the tensor. The following code selects layer 0 and head 0, converts the tensor to a numpy array, and plots it.

layer = 0
head = 0
attn = outputs.attentions[layer][0, head].detach().cpu().numpy()  # shape (seq_len, seq_len)

tokens = tokenizer.convert_ids_to_tokens(inputs.input_ids[0])

plt.figure(figsize=(8, 8))
plt.imshow(attn, cmap="viridis")
plt.colorbar()
plt.xticks(range(len(tokens)), tokens, rotation=90)
plt.yticks(range(len(tokens)), tokens)
plt.title(f"Attention Matrix (Layer {layer}, Head {head})")
plt.show()

This produces a 15x15 heatmap where each cell represents the attention weight from the token on the y-axis (query) to the token on the x-axis (key). Darker colors indicate higher attention. The diagonal often shows strong self-attention, but patterns vary by head.

Alternative: Visualizing All Heads in a Layer

The question's code attempted to visualize all heads in a layer by iterating over the second dimension of the 5D tensor. With the correct approach, you can do the same using outputs.attentions. Here's a corrected version that works with the standard shape:

def save_attention_image(attention, tokens, layer=0, filename='attention.png'):
    """
    Save attention weights for all heads in a given layer as a grid image.

    :param attention: Tuple of attention tensors from outputs.attentions.
    :param tokens: List of token strings.
    :param layer: Layer index to visualize.
    :param filename: Output image filename.
    """
    attn = attention[layer][0].detach().cpu().float().numpy()  # shape (num_heads, seq_len, seq_len)
    num_heads = attn.shape[0]
    fig, axes = plt.subplots(3, 4, figsize=(20, 15))  # adjust grid as needed

    for i, ax in enumerate(axes.flat):
        if i < num_heads:
            cax = ax.matshow(attn[i], cmap='viridis')
            ax.set_title(f'Head {i + 1}')
            ax.set_xticks(range(len(tokens)))
            ax.set_yticks(range(len(tokens)))
            ax.set_xticklabels(tokens, rotation=90)
            ax.set_yticklabels(tokens)
        else:
            ax.axis('off')

    fig.colorbar(cax, ax=axes.ravel().tolist())
    plt.suptitle(f'Layer {layer + 1}')
    plt.savefig(filename)
    plt.close()

# Usage:
save_attention_image(outputs.attentions, tokens, layer=0, filename='layer_0_heads.png')

This function creates a grid of subplots, one per head. For the medium model with 32 heads, you may need to adjust the grid to 4x8 or 8x4. The example uses 3x4 (12 heads) which is suitable for the mini model (12 heads).
